TSM thread comprehensive measurement system is suitable for measuring the effective mean diameter, single mean diameter, major diameter, minor diameter, pitch, tooth profile half angle, tooth profile deviation, profile angle, taper and other parameters of various internal and external dimension gauges such as cylindrical thread plug gauge, cylindrical thread ring gauge, taper thread plug gauge, taper thread ring gauge, smooth surface ring gauge, smooth surface plug gauge, etc. It is simple, convenient and fast to operate, has a wide range of applications, and has extremely high measurement uncertainty. It is an ideal measuring instrument for various metrology laboratories to carry out such parameter detection. The thread universal measuring machine is automatic measurement, and can complete the scanning measurement of all measured parameters of an axis section in two minutes, and display all measurement results.
Commodity name: Thread Comprehensive Measurement System
TSM thread comprehensive measurement system is suitable for measuring the effective mean diameter, single mean diameter, major diameter, minor diameter, pitch, tooth profile half angle, tooth profile deviation, profile angle, taper and other parameters of various internal and external dimension gauges such as cylindrical thread plug gauge, cylindrical thread ring gauge, taper thread plug gauge, taper thread ring gauge, smooth surface ring gauge, smooth surface plug gauge, etc. It is simple, convenient and fast to operate, has a wide range of applications, and has extremely high measurement uncertainty. It is an ideal measuring instrument for various metrology laboratories to carry out such parameter detection. The thread universal measuring machine is automatic measurement, and can complete the scanning measurement of all measured parameters of an axis section in two minutes, and display all measurement results.
◆ Fully automatic measurement of internal and external thread gauges

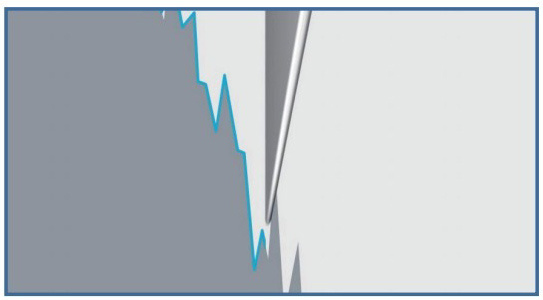

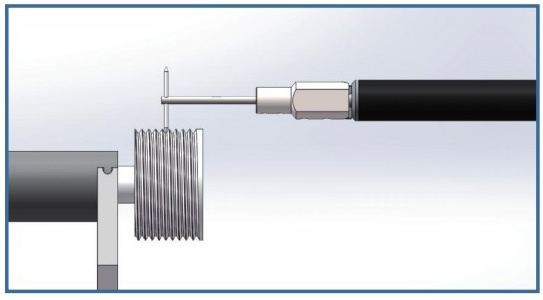

In one measurement, the probe automatically scans and measures the upper and lower threads. All thread parameter measurements and evaluations can be completed within two minutes.
◆ Innovative high-precision measurement system
Innovative use of high-precision zero expansion coefficient grating ruler to reduce the impact of temperature on instrument accuracy!
◆ Constant force measurement system
The patented (patent number: 2021100620108) force measurement adjustment system ensures accurate and continuously adjustable force measurement, keeps the force constant during measurement, and reduces the accuracy error caused by force changes.

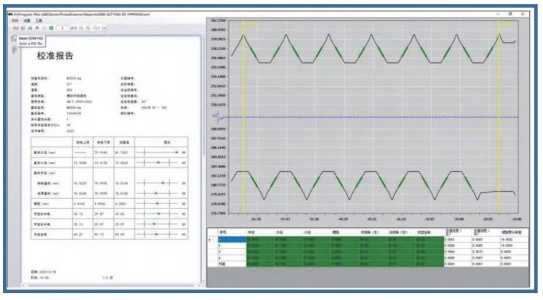

◆ Intuitive measurement software
The Thread Work Manager measurement software independently developed by Jescale Instrument can provide efficient and intelligent solutions for all traditional tasks of thread measurement. With the help of this software, users will gradually complete the entire process from measurement to data backup. The intuitive operation interface makes the operation simple, convenient and reliable.
Measuring the full size parameters of the thread - thread measurement items
Actual median diameter
Tooth Angle
Single actual diameter
Fang-shaped half-horn
Equivalent median diameter
Taper
Large diameter
Tooth profile deviation
Small diameter
Pipe Thread
Pitch

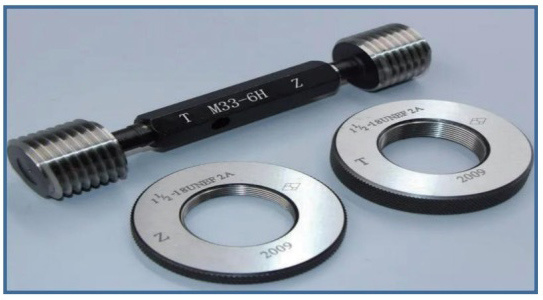

Various smooth ring gauges, plug gauges
Cumulative deviation of multi-thread pitch (or cumulative pitch error)
Various other standards

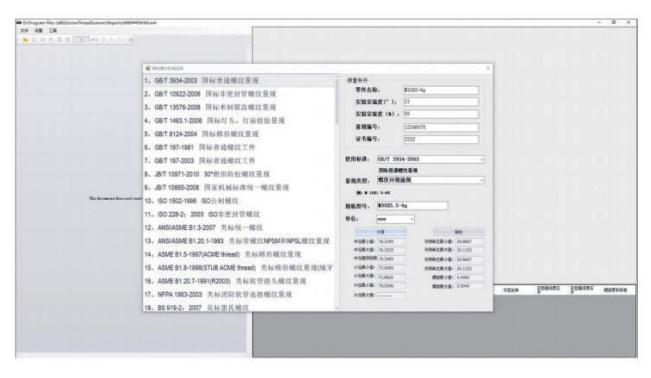

Built-in rich and powerful thread standard database and evaluation standards
In the database, the tolerance limit values of tens of thousands of thread and smooth gauges are stored, and metrologists can use computers to identify and evaluate the measurement results in great detail.
After the instrument is initialized and calibrated, the calibration measurement of the gauge can be carried out.
All measurement profiles can be converted into DXF format for further evaluation and analysis through the AUTO-CAD system.
The database has various standards built in, which can realize the automatic comparison between the data of the measured gauge or workpiece and various standards
ANSI/ASME B1.2 Unified
Unified thread product standard machine gauge standard
ANSI/ASME B1.20 NPT
American Sealing Pipe Thread Standard
BS 21 Pipe threads
Taper Thread Pipe Thread Standard
BS 919/1 Unified
Specification for limits and tolerances of thread gauges
BS 919/2 Whitworth
Whitworth thread gauge
BS 919/3 ISO Metric
Metric thread
ISO 712 Pipe threads
Pipe thread (taper thread standard)
ISO 228 Pipe threads
Pipe Thread
ISO 286 Plain bores and shafts
Standard tolerance grades and limit tolerances for holes and shafts
ISO 1502 Metric
Metric thread
DIN 13 Metric
Metric thread
DIN 2999 Pipe threads
Taper Thread Pipe Thread Standard
DIN 7162 Plain rings and plugs
Smooth working gauges, gauge manufacturing tolerances and permissible wear standards
DIN 40401 Edison
Edison screw (lamp socket thread)
HE
Japanese thread standard
API7-2
Petroleum threads, various thread standards and the latest national thread verification procedures
GB/T 3934-2003
National standard ordinary thread gauge
GB/T 1957-2006
National standard smooth limit gauge
GB/T 11853-2003
National Standard Morse and Metric Taper Gauges
GB/T 11854-2003
National Standard 7:24 Tool Taper Gauge
GB/T 22091.1-2008
National standard 55° sealing pipe thread (for column and cone matching)
ISO 7-2:2000 (national standard)
National standard 55° sealing pipe thread (for cone-to-cone matching)
GB/T 197-2003
National standard common thread workpiece
GB/T 8336-2011
National standard gas cylinder thread gauge
JB/T 10971-2010
30° wedge-shaped thread gauge
JB/T 10031-1999
Pipe thread gauge for thread seals used in national mechanical standards
Technical Parameters
model
TSM6080
TSM10080
TSM16080
TSM18080
External dimension measuring range
mm
1.0-50
1.0-90
1.0-150
1.0-170
Inner dimension measuring range
mm
2.5-60
2.5-100
2.5-160
2.5-180
Maximum scanning range
mm
80
80
80
80
Minimum pitch
mm
0.1
Instrument weight
kg
155
160
165
225
Measurement uncertainty
Cylindrical thread ring gauge or tapered thread ring gauge (minor diameter of 2.5mm or more, thread half angle ≥27°)
Small diameter
μm
±(2.0+L/200)
±(2.5+L/200)
±(2.5+L/200)
±(2.5+L/200)
Actual thread diameter
μm
±(2.0+L/200)
±(2.5+L/200)
±(2.5+L/200)
±(2.5+L200)
Pitch
μm
±(0.7+L/200)
±(0.7+L/200)
±(0.7+L/200)
±(0.7+L/200)
Cylindrical thread plug gauge or tapered thread plug gauge (larger diameter of 1mm or more, thread half angle ≥27°)
Large diameter
μm
±(1.5+L/200)
±(2.0+L/200)
±(2.0+L/200)
±(2.0+L/200)
Actual thread diameter
μm
±(1.5+L/200)
±(2.0+L/200)
±(2.0+L/200)
±(2.0+L/200)
Pitch
μm
±(0.7+L/200)
±(0.7+L/200)
±(0.7+L/200)
±(0.7+L/200)
Smooth cylindrical tapered ring plug gauge (diameter 10mm or more)
Smooth ring gauge diameter
μm
±(1.0+L/200)
±(1.0+L/200)
±(1.5+L/200)
±(1.5+L/200)
Smooth plug gauge diameter
μm
±(1.0+L/200)
±(1.0+L/200)
±(1.5+L/200)
±(1.5+L/200)
Smooth cylindrical and conical ring plug gauges (diameter 1 to 10 mm)
