Fully Automatic High Precision Length Measuring Machine

Nanocheck A series high-precision automatic length measuring machine adopts precision guide rail structure and HEIDENHAIN high-precision grating scale measurement system. The grating scale length is 350mm, and the zero expansion coefficient grating scale can ensure high measurement accuracy. The natural marble is used as the base to ensure the stability and reliability of the instrument. The instrument spindle and workbench axes are both fully automatic, effectively eliminating the influence of human measurement. The high-precision length measuring machine is a traceability benchmark for length measurement, which can ensure the accuracy of value transfer. It is mainly used for calibration: smooth plug gauges, thread plug gauges, smooth ring gauges, thread ring gauges, gauge blocks, tables, taper gauges, calipers, calipers, micrometers, pin gauges, calibration rods, etc.

Technical Features
◆ The instrument is designed in accordance with the Abbe principle
◆ Adopts high-precision imported grating measurement system
◆ The grating scale length is 350mm, and the absolute measurement range is 0-350mm
◆ Wide measuring range: smooth plug gauges, thread plug gauges, smooth ring gauges, thread ring gauges, gauge blocks, tables, taper gauges, calipers, micrometers, pin gauges, calibration rods, etc.
◆ The maximum allowable error is 0.07+L(mm)/2000μm, L is the measuring length, unit is mm
◆ The YZ axis of the workbench automatically measures to find the inflection point to eliminate the influence of manual measurement errors
◆ The workbench has a large measuring range and can be raised and lowered to 80mm
◆ Calibration standards and test reports can be customized according to customers
◆ The software operation interface is simple and convenient
◆ Built-in temperature compensation system, real-time compensation data
◆ The values ​​can be converted into metric and imperial systems, and various imperial tables can be calibrated
◆ The calibration report can be output in word version
◆ Historical measurement data can be queried

Technical Parameters

◆ A larger range can be customized according to customer's special requirements

Function Application and Examples

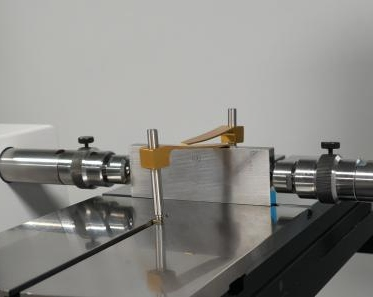

Calibration gauge block

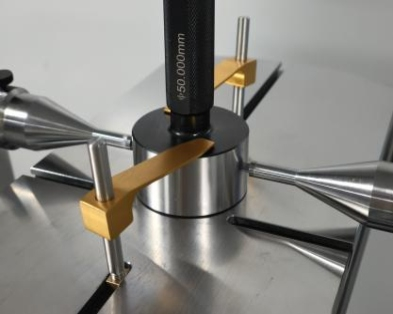

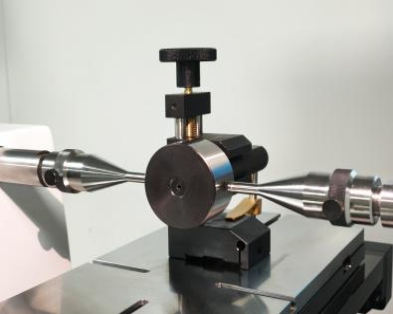

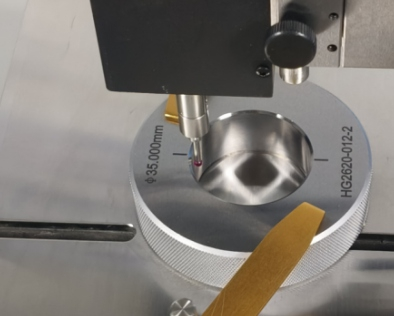

Calibration of small smooth ring gauge

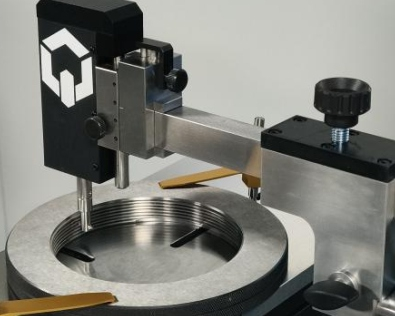

Measuring thread ring gauge

Measuring smooth plug gauge

Measuring smooth plug gauge

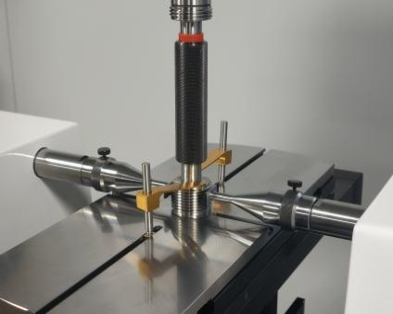

Measuring thread plug gauge

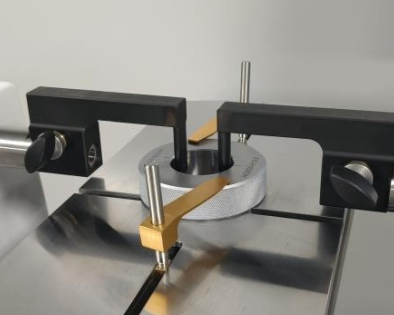

Measuring smooth ring gauge

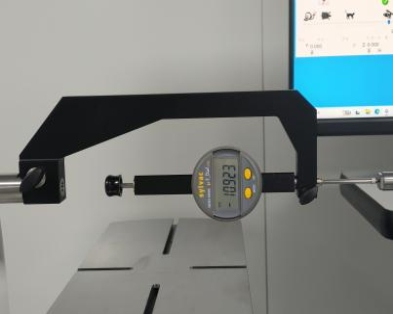

Measuring digital display

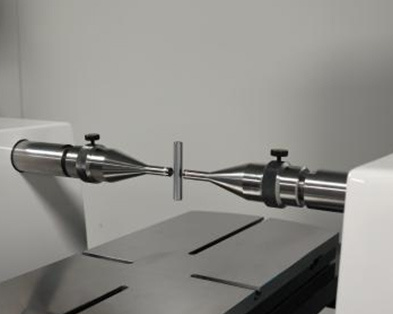

Measuring rod

Professional Display, Management and Measurement Software System

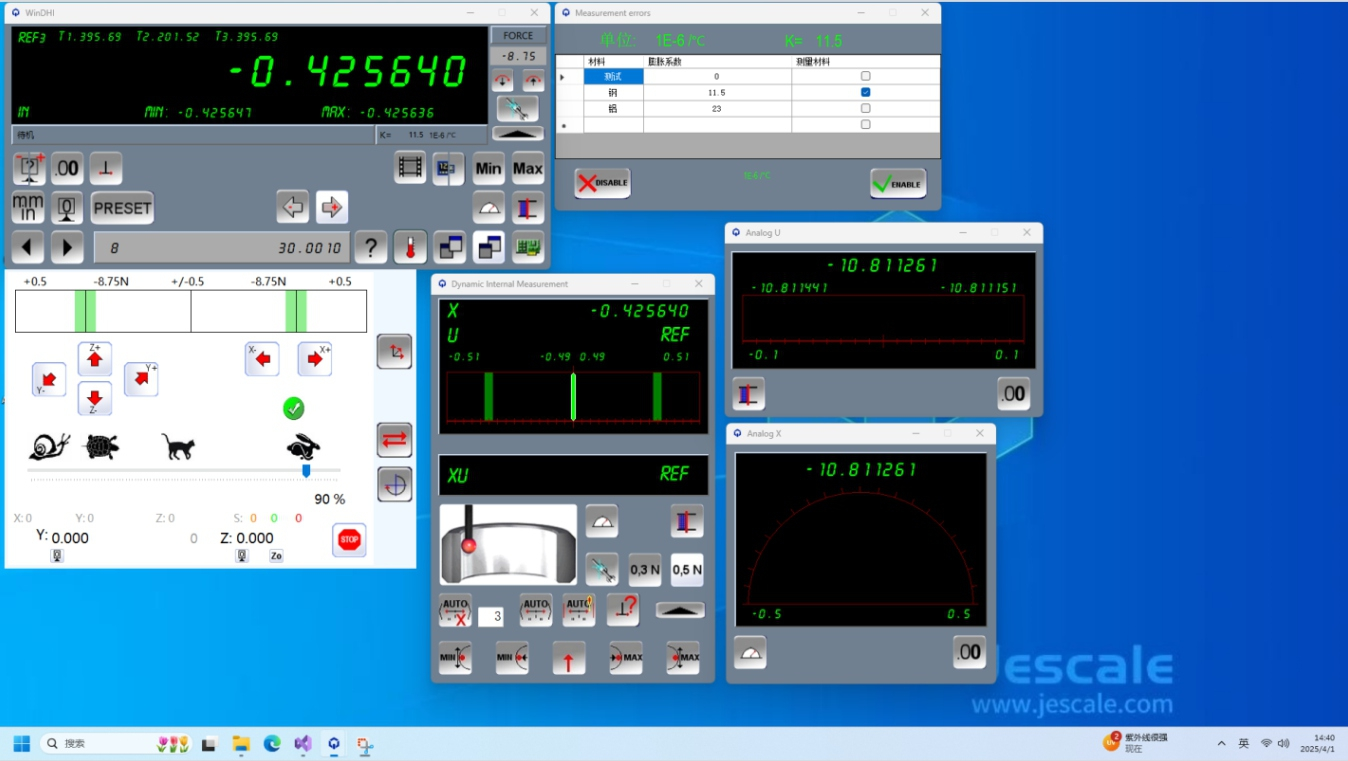

Software interface

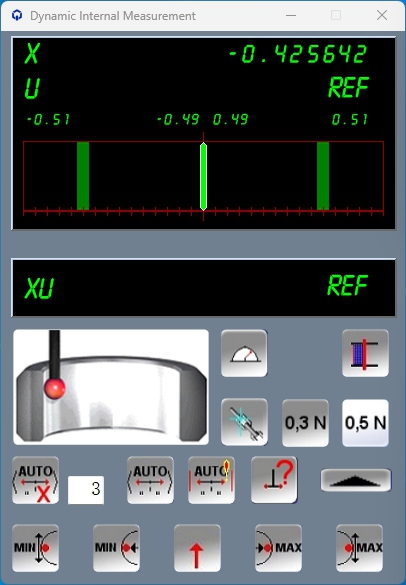

Sensitive electronic probe measurement interface

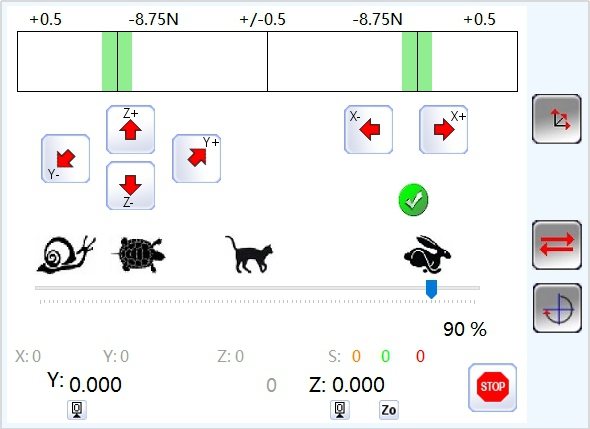

Motion control interface, adjustable motion speed and control direction

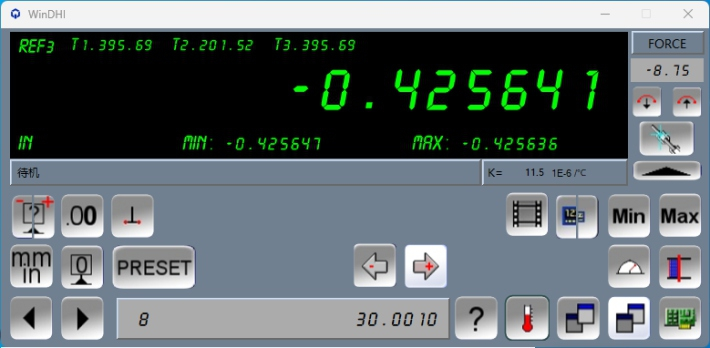

Main grating reading interface (main interface)

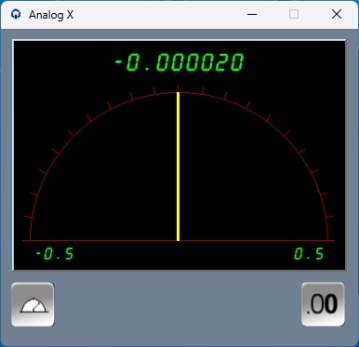

Inflection point display interface
