NANO-CHECK Series High Precision Length Measuring Machine

NANO-CHECK series high-precision length measuring machine, absolute measuring range 350mm, maximum allowable error [0.085+L(mm)/2000]μm, high-precision universal length measuring machine is one of the length dimension traceability benchmarks of the metrology room. The metrology room is used to calibrate various measuring tools such as: gauge blocks, smooth (thread) ring plug gauges, smooth taper ring plug gauges, thread taper ring plug gauges, inner and outer raceways of bearings, spline gauges, calibrators, calibration rods, rulers, and meters.

Category:

Precision Length Measuring Machine

Contact hotline:

Mr. Tang: 13120738218

Mr. Gao: 15898107995

Email: info@jescale.com

Inquiry

Product Description

Commodity name: NANO-CHECK Series High Precision Length Measuring Machine

Technical Features
◆ Absolute measuring range 350mm
◆ Electronic sensor measuring force 0.3N
◆ Grating scale length 350mm
◆ Universal workbench can be easily moved along the X-axis
◆ Maximum resolution 0.001μm
◆ Heidenhain high-precision new grating measurement system
◆ Maximum allowable error [0.085+L(mm)/2000]μm
◆ Built-in temperature compensation system, real-time compensation
◆ Measuring force 0-12N continuously adjustable

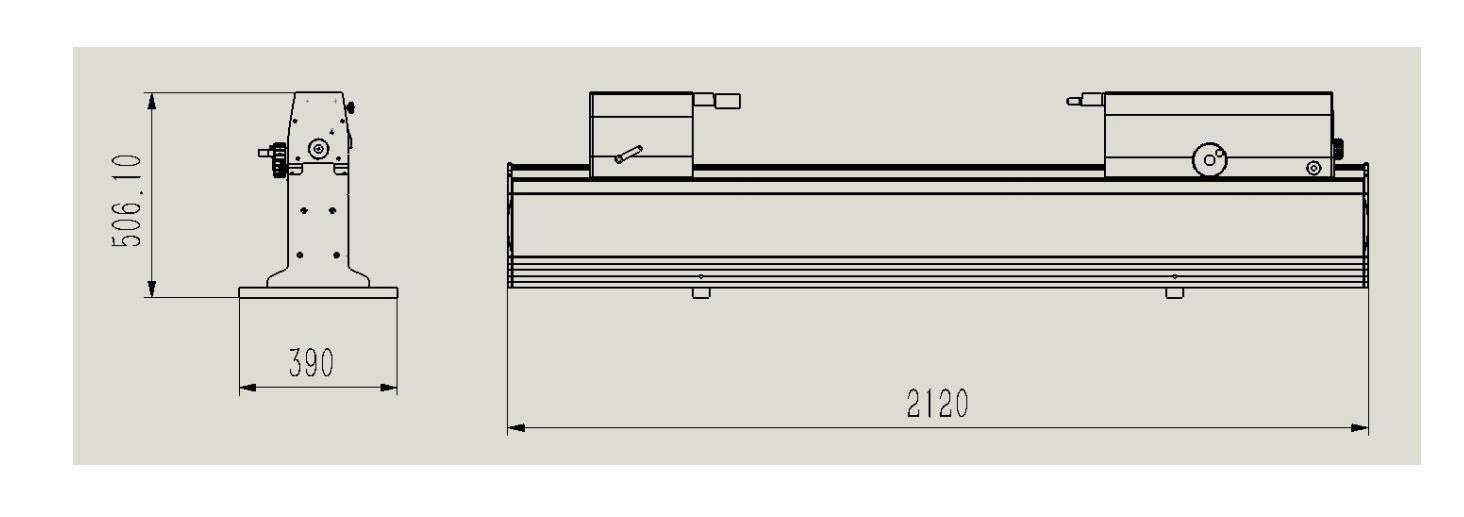

Dimensions

Technical Parameters

Model		NANO-CHECK 350	NANO-CHECK 600	NANO-CHECK 1100
Absolute measuring range	mm	350	350	350
Relative measuring range	mm	0-350	0-600	0-1100
Maximum allowable error	μm	0.085+L(mm)/2000
Resolution	μm	0.001
Repeatability (2s)	μm	0.03
Force measurement (software adjustable)	N	0-12
Ambient temperature	℃	+10 to +40
Relative humidity	%	20-80
Weight	kg	350	420	500
Verification requirements		Humidity 50%±5%; Calibration temperature 20℃±0.2℃; Temperature gradient ≤0.5℃/hour

◆ Can be used with different accessories
