Horizontal Thread Comprehensive Measurement System

The maximum measuring range is 650mm!
TSM horizontal thread comprehensive measurement system adopts high-precision grating measurement system, high-precision air bearing drive system, servo motor control system, and high-performance industrial computer control system to achieve fully automatic and high-precision measurement of comprehensive parameters of threads.

Category:

Thread Comprehensive Measurement System

Contact hotline:

Mr. Tang: 13120738218

Mr. Gao: 15898107995

Email: info@jescale.com

Inquiry

Product Description

Commodity name: Horizontal Thread Comprehensive Measurement System

Technical Parameters

Model		TSM250	TSM350	TSM450	TSM550	TSM650
External dimension measuring range	mm	1.0-250	1.0-350	1.0-450	1.0-550	1.0-650
Inner dimension measuring range	mm	2.5-250	2.5-350	2.5-450	2.5-550	2.5-650
Maximum scanning range	mm	250	250	250	250	250
Minimum pitch	mm	0.1
Measurement uncertainty
Cylindrical thread ring gauge or tapered thread ring gauge (minor diameter of 2.5mm or more, thread half angle ≥27°)
Small diameter	μm	±(3.0+L/200)
Actual thread diameter	μm	±(3.0+L200)
Pitch	μm	±(0.8+U/200)
Cylindrical thread plug gauge or tapered thread plug gauge (larger diameter of 1mm or more, thread half angle ≥27°)
Large diameter	μm	±(2.9+L200)
Actual thread diameter	μm	±(2.9+L200)
Pitch	μm	±(0.8+L/200)
Smooth ring gauge, plug gauge
Smooth ring gauge diameter	μm	±(2.0+L/200)
Smooth plug gauge diameter	μm	±(2.0+L/200)

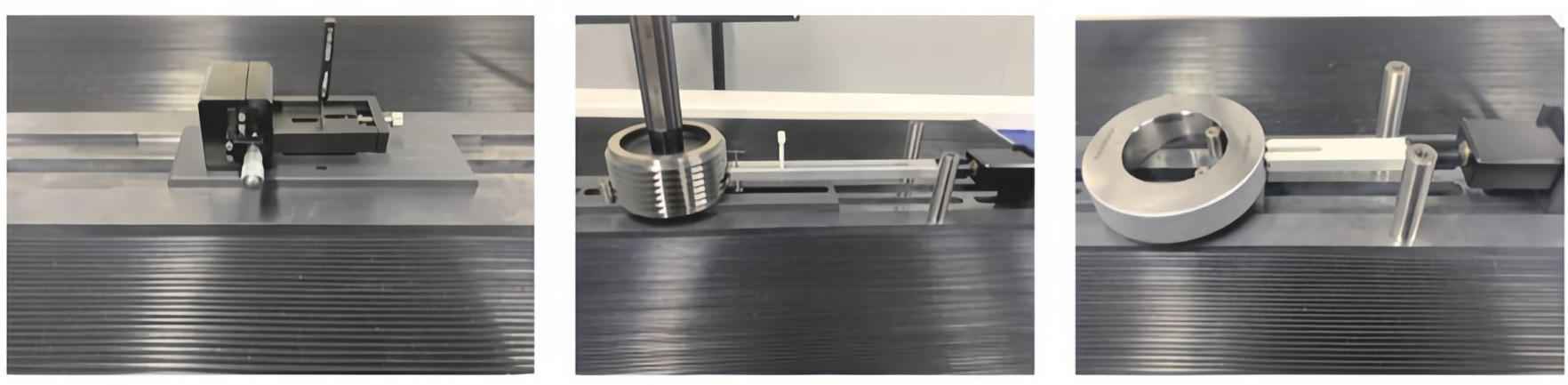

Application Cases
