High Precision Gauge Block Comparator
Category:
Gauge Block Comparator
- Product Description
-
Technical Features
- Easy to operate, high-precision, accurate and reliable gauge block verification system.
- Equipped with a well heat-insulated acrylic protective cover to ensure temperature stability during gauge block verification.
- Comes with a gauge block positioning device and movement technology, easily completing gauge block center-point and indication testing.
- The measuring software is easy to operate with fully automatic data processing. It supports setting reference gauge block correction values and customer information, directly generates original records and certificate formats, and can automatically determine gauge block grades.
- High-precision ground seven-rib worktable support bracket: gauge blocks can be moved conveniently on the measuring table, with no scratching or wear on the working surfaces of gauge blocks.
- High-rigidity cast iron worktable ensures stability.

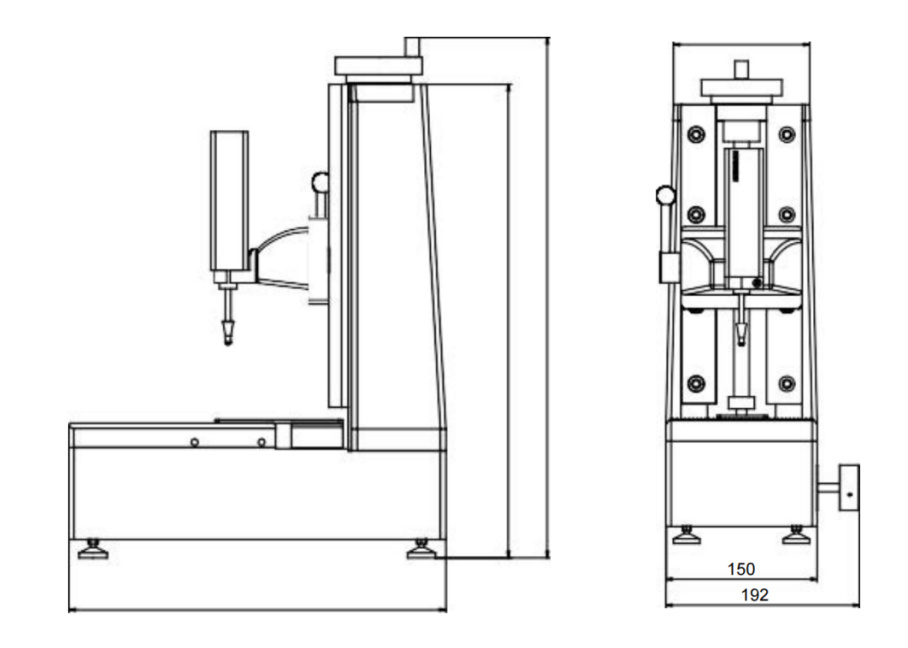

Technical Parameters
Model GCK150 Measuring Range 0-150mm Direct Measuring Range 0-25mm Maximum Permissible Error [0.03+L(mm)/1000]μm Measuring Force 0.85N/1.0N/1.45N Resolution 0.01μm/0.001μm Indication Variation 3σ≤0.03μm Measuring Sensor Incremental probe Measuring System German HEIDENHAIN glass-ceramic transmission phase grating scale Drive Method Motorized Measuring Software Automatic sampling of measurement data, automatic result determination, report generation, etc. Reference Verification Temperature Conditions 20℃±0.2℃, temperature gradient ≤0.5℃/h Reference Verification Humidity Conditions (50±5)%RH Weight 65Kg Power Supply 220V50Hz

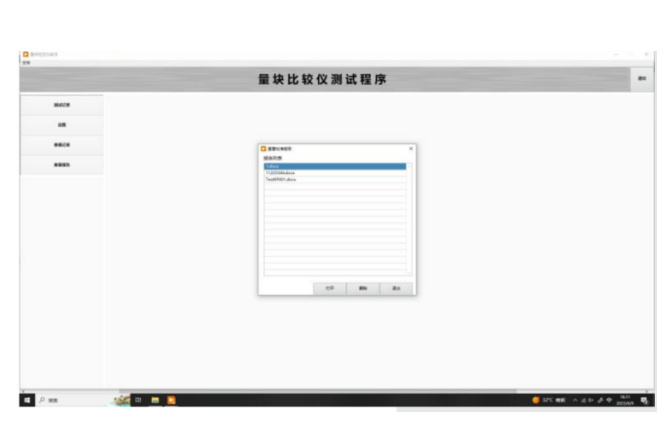

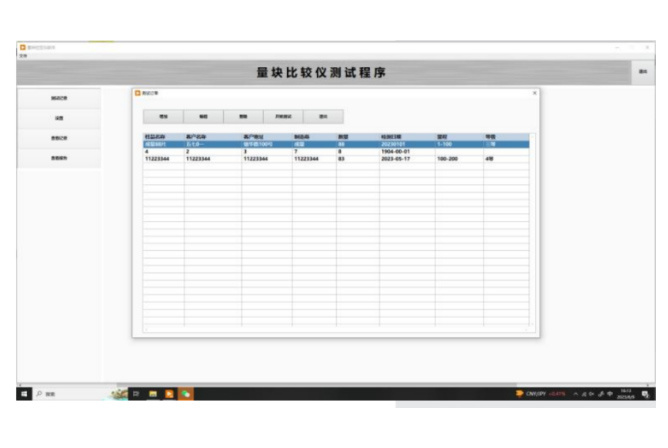

Input of reference gauge block and measured gauge block information: after entering the number, grade and nominal length of the measured gauge block, its length variation, uncertainty, limit deviations and other information will be displayed according to the verification regulation.

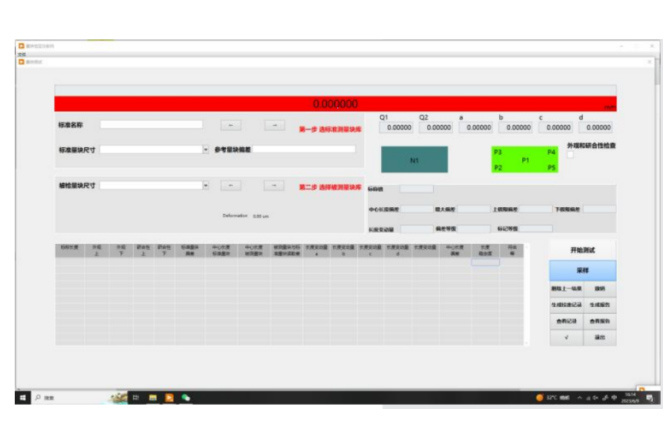

After adding the reference standard and measured gauge block information, enter the measurement interface to make a selection. Once the selection is completed, the measurement begins: 8 points need to be tested, and the interface shown on the left will pop up for gauge block testing. When the small black dot moves to the designated gauge block, the probe must be manually moved to the designated position for measurement.

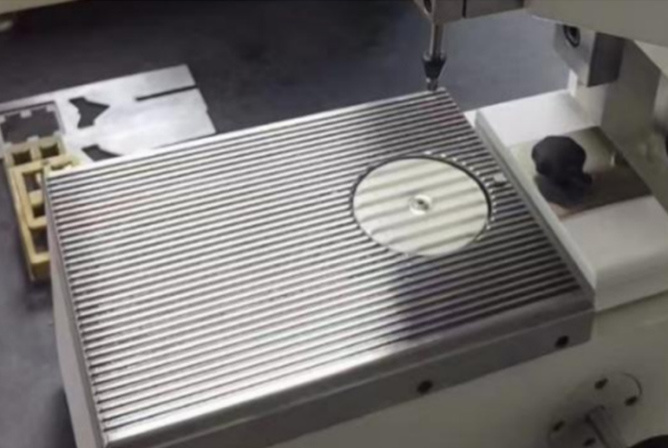

Extra-Large Worktable
Ground ribbed worktable with hard-chromium-plated and ground surface. The smooth surface effectively protects gauge block surfaces from wear. Gauge blocks can be placed on it for temperature stabilization, ensuring minimal temperature difference between the gauge block and the worktable. The worktable has high hardness, ensuring long service life.
High-Efficiency 25mm Absolute Measuring Range

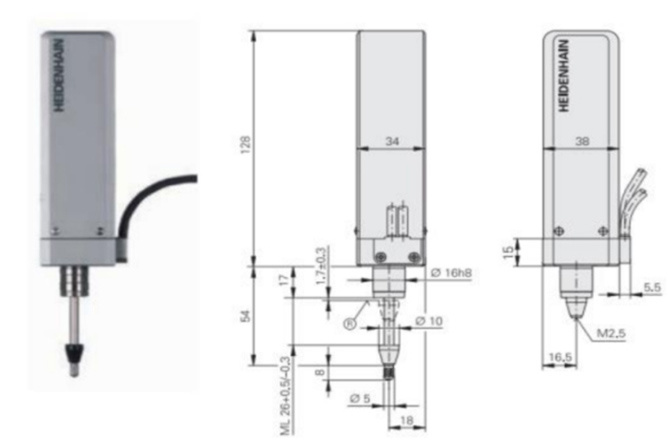

The German HEIDENHAIN sensor enables direct measurement of gauge blocks up to 25mm. For gauge blocks below 10mm, one reference gauge block as the standard is sufficient — saving time! The measuring force is adjustable at 0.85N/1N/1.45N, with motor-controlled movement.

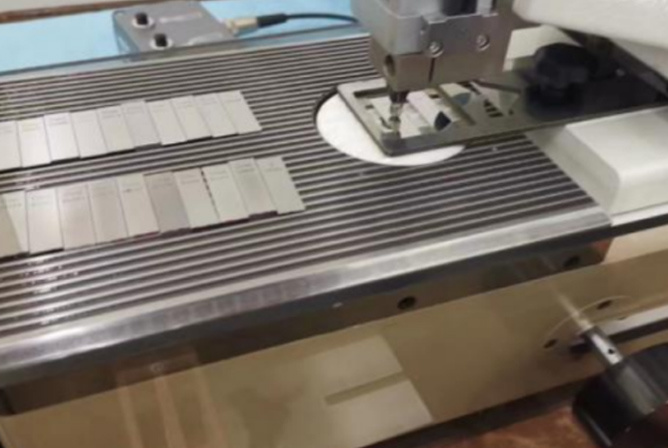

Patented Gauge Block Quick-Movement Device
The three-directional gauge block movement device ensures fast and accurate movement between the measuring points of the reference and measured gauge blocks!
