UHV Portable High Precision Length Measuring Machine

The UHV-100 small length measuring machine is designed for the verification and calibration of small gauges. The instrument is easy to operate and can accurately measure plug gauges, ring gauges, thread plug gauges, indicator gauges and other precision parts. The integrated photoelectric measuring system guarantees high accuracy. A separate display unit or computer software can show the current value of the measured value.

Category:

Precision Length Measuring Machine

Tel: 400-019-8216

Email: info@jescale.com

Inquiry

Product Description

Commodity name: UHV Portable High Precision Length Measuring Machine

Technical Features
◆ Suitable for laboratories and workshops
◆ Very simple operation
◆ Resolution: 0.00001mm
◆ Adjustable measuring force: 0-4N
◆ Cast iron base is preferred for base, stable and reliable
◆ Portable and compact, easy to move.
◆ One instrument can meet the internal and external dimension measurement

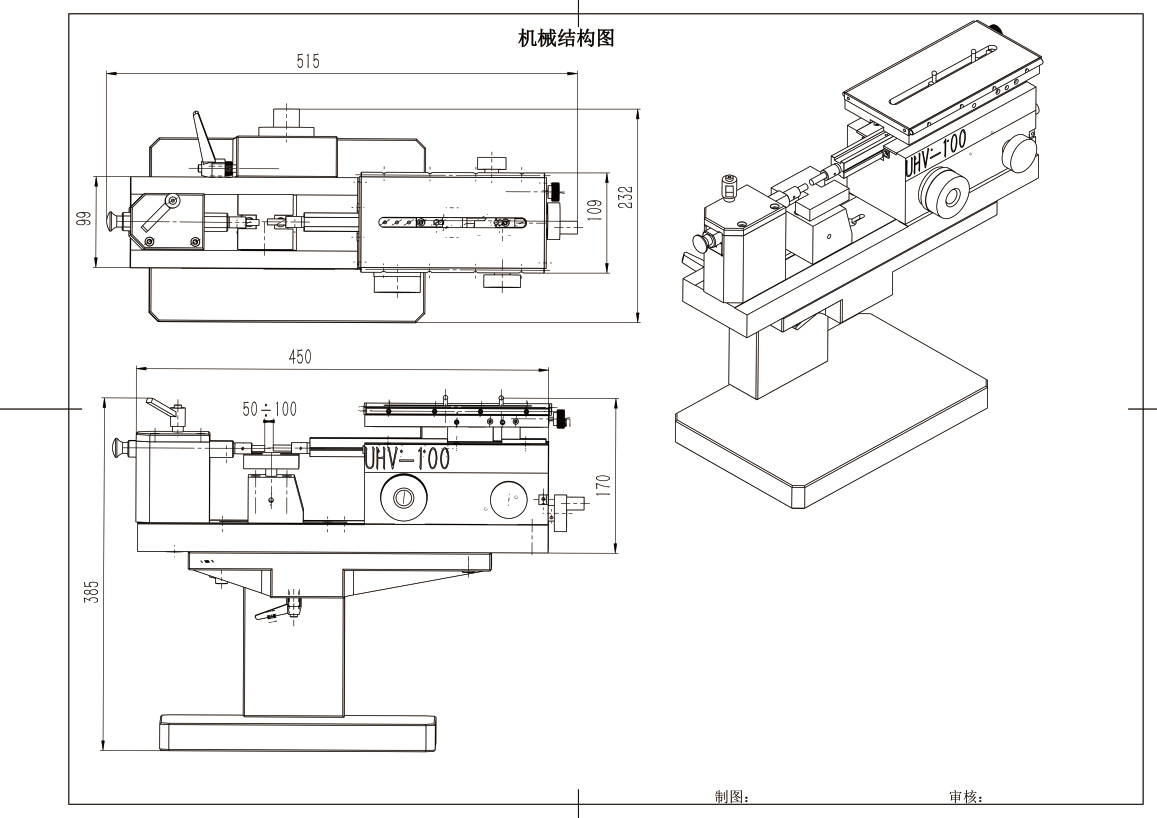

Dimensions

Technical Parameters

Model		UHV-100
Absolute measuring range	mm	50
Inner dimension measuring range	mm	100
External dimension measuring range	mm	100
Maximum allowable error	μm	0.2+L(mm)/250
Measuring force	N	0-4
Resolution	mm	0.1-0.00001
Repeatability (2S)	μm	0.1
Operating temperature	℃	10-40
weight	kg	22
Verification requirements		Temperature 50% ± 5%; calibration temperature 20℃ ± 2℃;

◆Can be used with different accessories
