Fully Automatic Indicator Calibrator

ALS series fully automatic indicator calibrator adopts Abbe principle structure design, imported grating ruler system, precision motion guide technology, high-resolution CCD and non-reflective light source, adopts the latest camera image processing and recognition technology, uses precision motor to control the movement of the instrument to complete the measurement, and has reliable accuracy. It can detect various gauges such as dial indicator, micrometer, digital display, lever gauge, torsion spring gauge, inductive locator, etc., with a wide range of practical applications and high measurement accuracy. The software automatically completes the evaluation of the measurement results according to the national calibration regulations and obtains the measurement report. The software interface is simple and easy to understand, which is convenient for users to use.

Category:

Indicator Calibrator

Product Center

Tel: 400-019-8216

Email: info@jescale.com

Inquiry

Product Description

Commodity name: Fully Automatic Indicator Calibrator

Technical Features
◆ The instrument is designed in accordance with the Abbe principle
◆ Adopts high-precision imported grating measurement system
◆ Wide measuring range: various gauges such as dial indicator, micrometer, digital display, lever indicator, torsion spring gauge, inductive locator, etc.
◆ Measure according to the latest national calibration procedures
◆ Customized calibration standards and test reports can be made according to customers
◆ The software operation interface is simple and convenient
◆ Numerical values can be converted into metric and imperial units, and various imperial meters can be calibrated
◆ The calibration report can be output in word version
◆ With automatic zeroing function, calibration can be achieved without manual adjustment of zero position
◆ Error out-of-tolerance prompt function during calibration
◆ Historical measurement data can be queried

Technical Parameters

Model		ALS-50	ALS-100	ALS-50P	ALS-100P
Measuring range	mm	0-50mm	0-100mm	0-50mm	0-100mm
Maximum allowable error (L is the measured length)	μm	1.0+L(mm)/100	1.0+L(mm)/100	0.1+L(mm)/100	0.1+L(mm)/100
Return error	μm	0.5	0.5	0.3	0.3
Resolution	μm	0.1	0.1	0.01	0.01
Drive mode		Motor drive
Weight	Kg	22
Computer interface		RS232 interface
Verification temperature	℃	20±1, temperature gradient ≤0.5/hour
Ambient humidity		50%±5%
Work Environment		Temperature (20±5)℃, 50%-70%RH

Configuration
◆ High-resolution camera
◆ Light source
◆ Universal fixture
◆ Internal diameter gauge fixture
◆ Lever gauge fixture
◆ Torsion spring gauge fixture
◆ Instrument accessory box
◆ Calibration software
◆ Brand computer
◆ Laser printer
◆ Manual
◆ Product certificate, warranty card

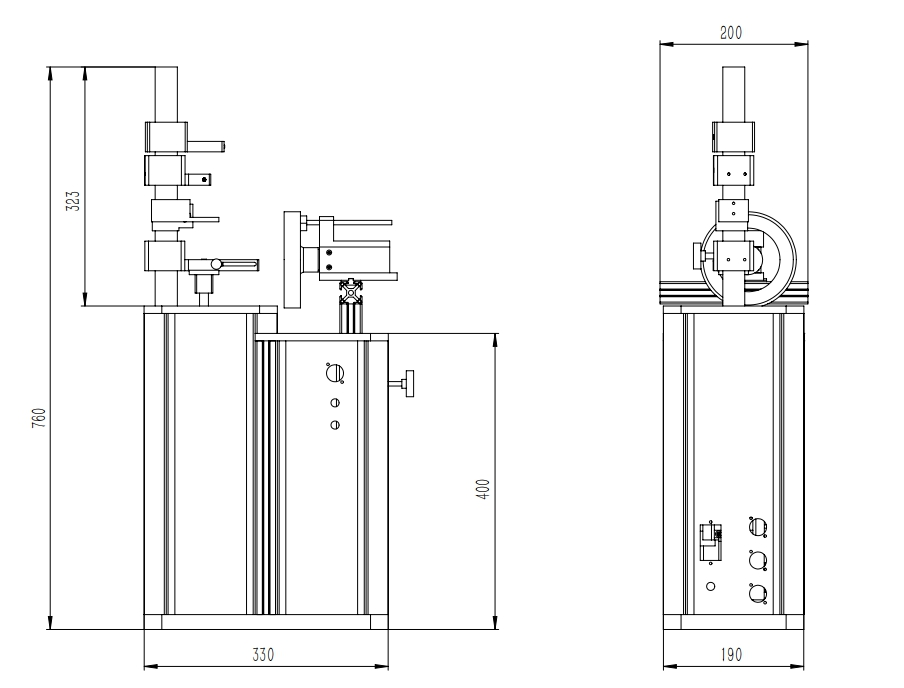

Dimensions

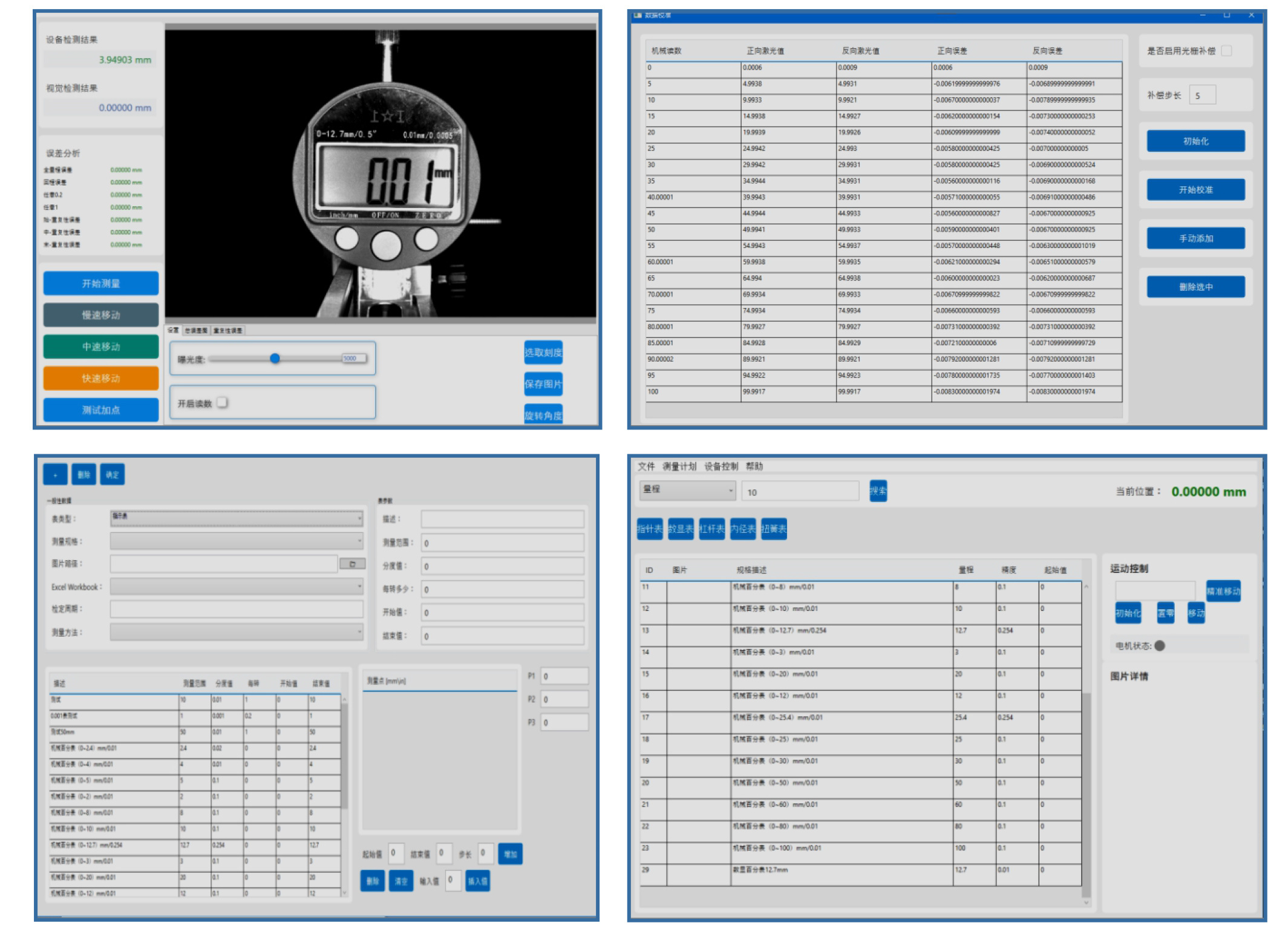

Software Interface Operation

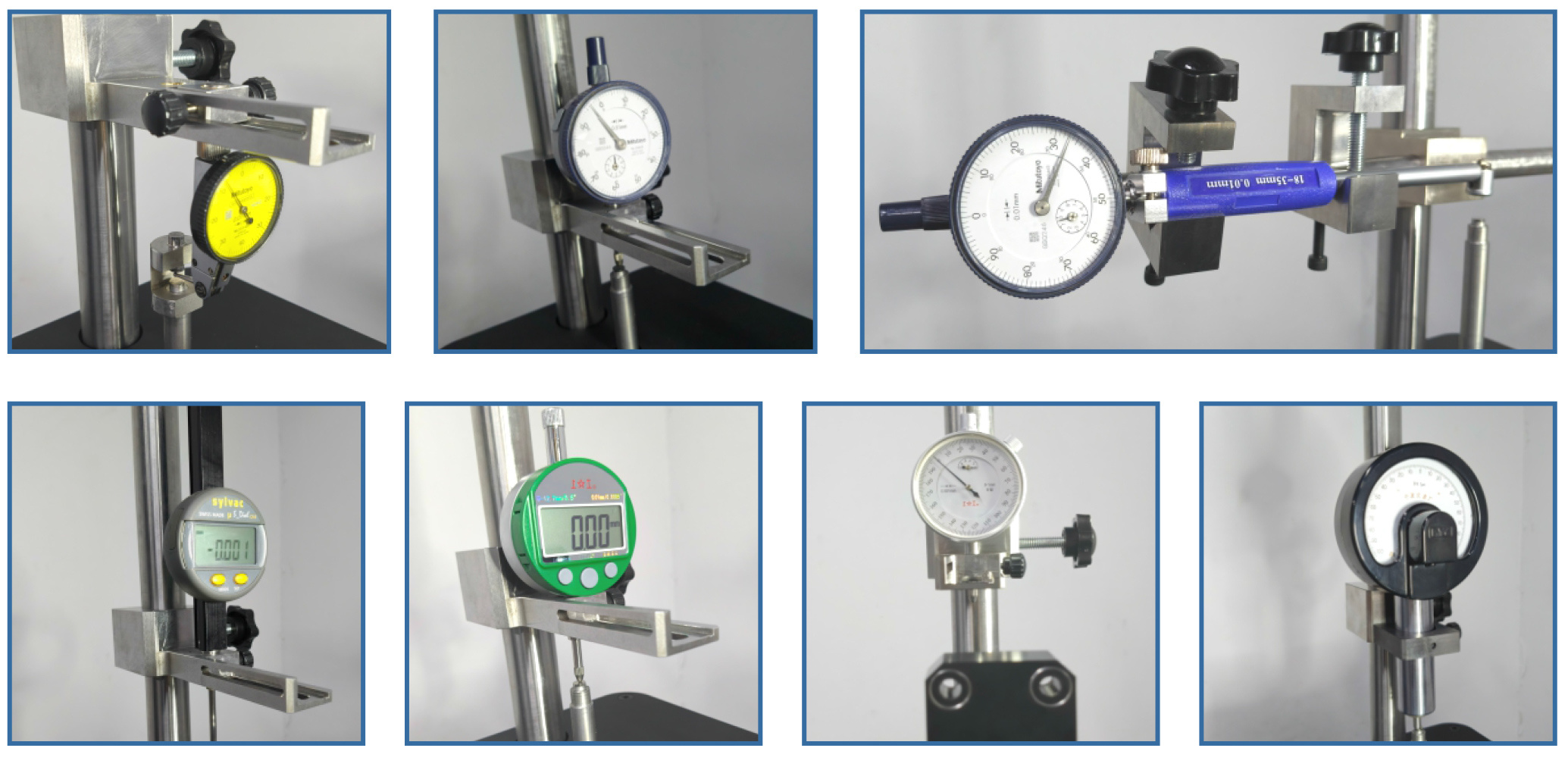

Measurement Examples (Lever gauge, dial indicator, bore gauge, digital micrometer, digital dial indicator, micrometer, torsion spring gauge)
