Length Setting Instrument

The LSM series length setting gauge can set the size arbitrarily to replace the smooth ring gauge and gauge block. It is used to calibrate various calipers, micrometers, internal diameter gauges, calipers, aperture measuring instruments, etc. It is highly practical and widely used in workshops and laboratories. The software can be programmed to set automatic measurement, and custom positions and dwell times can be set, making the measurement efficient and fast. The marble base and imported grating ruler ensure the measurement accuracy of the instrument.

Technical Features
◆ Built-in programming program, can set the defined position arbitrarily
◆ Fully automatic measurement mode, automatically display the measurement data
◆ Can stay at any position for a long time
◆ Imported grating ruler ensures high accuracy of the instrument
◆ Used to calibrate calipers, outside micrometers, inside diameter gauges, three-jaw inside micrometers, inside diameter sensors, etc.
◆ High-precision guide rails ensure long service life
◆ Can transmit measurement data via data line
◆ Comply with national metrology specifications for step gauges

Technical Parameters

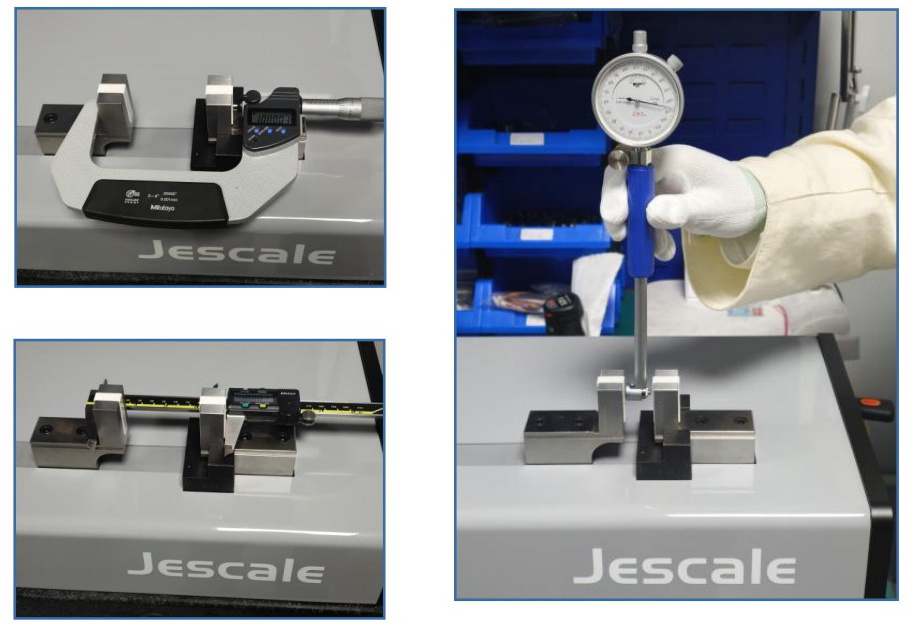

Measurement Example Diagram
