H2 Series 2D Height Gauge

Jescale Technology H2 series two-dimensional height gauge, unique patented bidirectional force measurement system ensures better stability and repeatability of the instrument. Friendly human-machine interface, simple function keyboard, simple operation and easy to master, powerful functions, providing programming function and two-dimensional measurement. It can measure height, depth, slot width, inner and outer diameter, hole center distance, axis center distance, flatness, plane angle and verticality, straightness (optional accessories), etc. The color LED touch screen graphic prompts operation, and the large screen displays the measurement results, avoiding the training and memory of complex function keys.

Category:

Altimeter

Tel: 400-019-8216

Email: info@jescale.com

Inquiry

Product Description

Commodity name: H2 Series 2D Height Gauge

Main Features
◆ Electronic adjustment of measuring force and force balance, optional extension rod up to 400mm
◆ Manual and automatic machine, high precision, fast measuring speed
◆ Heidenhain metal grating scale, little influence of ambient temperature
◆ Absolute display and absolute measurement throughout the whole
process◆ The application range can be expanded by using double probe holder
◆ Air flotation function, adjustable air volume
◆ Two-dimensional measurement function, and programmable measurement
◆ Automatic recording of inflection points
◆ Color LED touch screen operation menu, full graphic operation prompt
◆ Ambient temperature display, temperature compensation function
◆ On-site data storage for later data processing
◆ RS232 and USB bidirectional interface, optional printer
◆ Optional wireless transmission module

Standard Configuration
◆ A set of power adapter
◆ A setting gauge
◆ A standard ruby Φ4 probe
◆ Test report, operation manual
◆ Dust cover

Technical Parameters

Model (2D manual and automatic)	H2-400	H2-700	H2-1100
Absolute measuring range (scale length)	0-407mm	0-711mm	0-1110mm
Application	0-719mm	0-1023mm	0-1422mm
Resolution	0.0001mm	0.0001mm	0.0001mm
Maximum allowable error	[2.0+L(mm)/400]μm	[2.0+L(mm)/400]μm	[2.0+L(mm)/400]μm
Repeatability (2S)	1(middle:2)μm
Force adjustment range	0.75-1.5N
Manual moving speed	1000mm/s
Automatic moving speed	150mm/s
Power supply	Rechargeable battery
Usable time on one charge	12h
Extreme operating temperature	+10 to +40C
Data Output	USB/RS232
Permissible error of verticality (positive direction)	5μm	8μm	11μm
Overall height	780mm	1084mm	1482mm
Net weight	22kg	25kg	34kg

Function Application and Examples

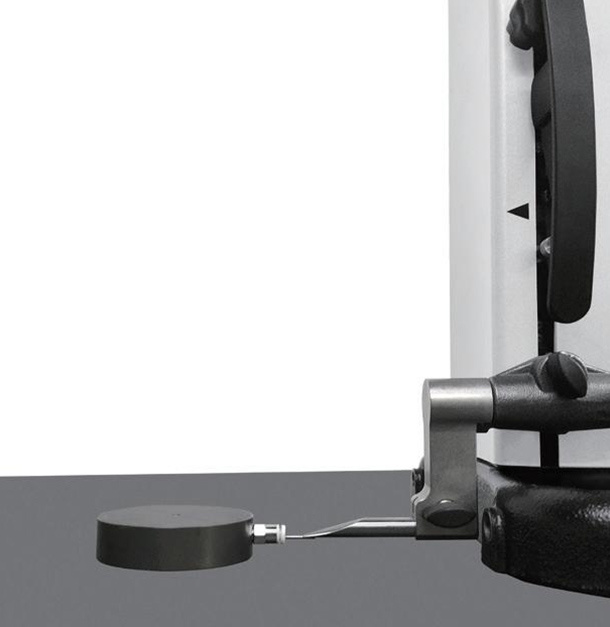

Watch movement height measurement

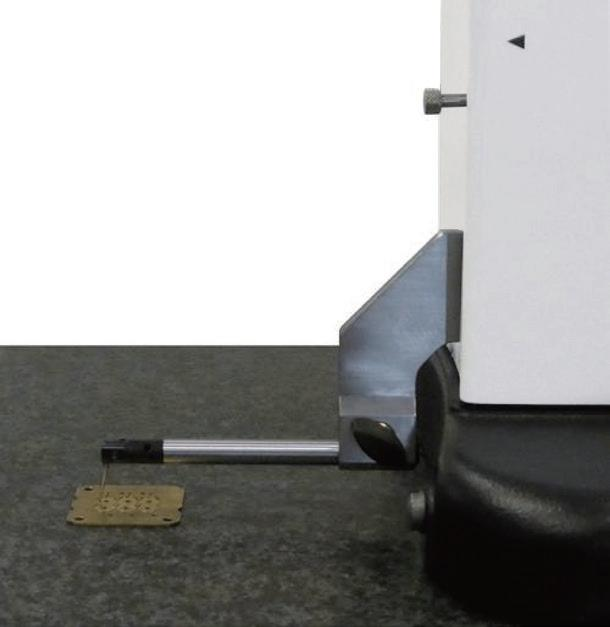

Small diameter measurement

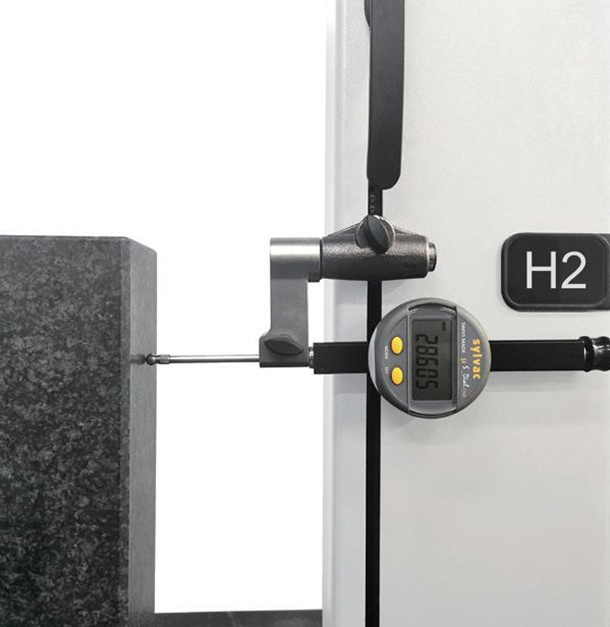

Electronic probe, measuring verticality

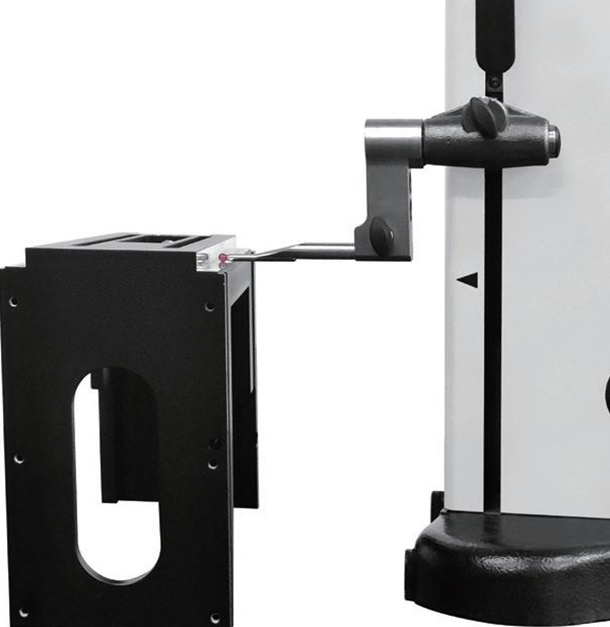

Hole position measurement, intuitive and simple

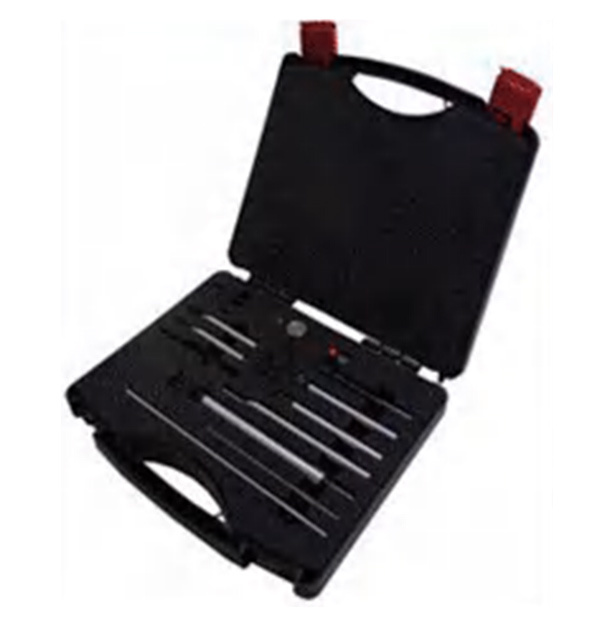

Probe Kit Accessories

Adjustable range

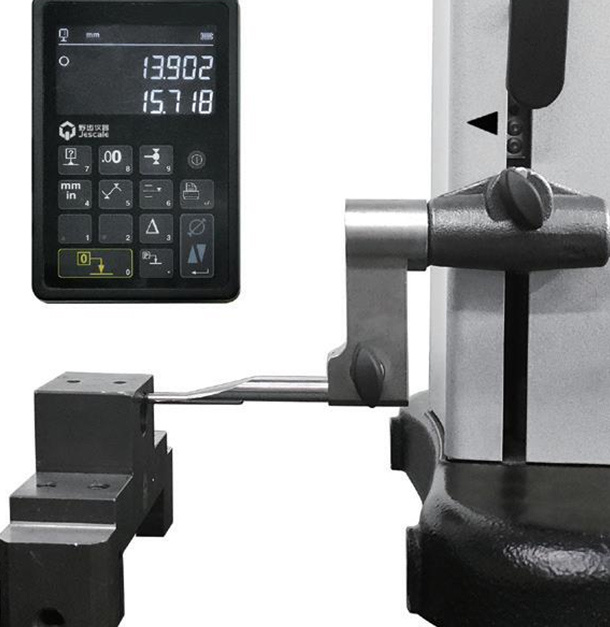

Maximum/minimum/difference measurement

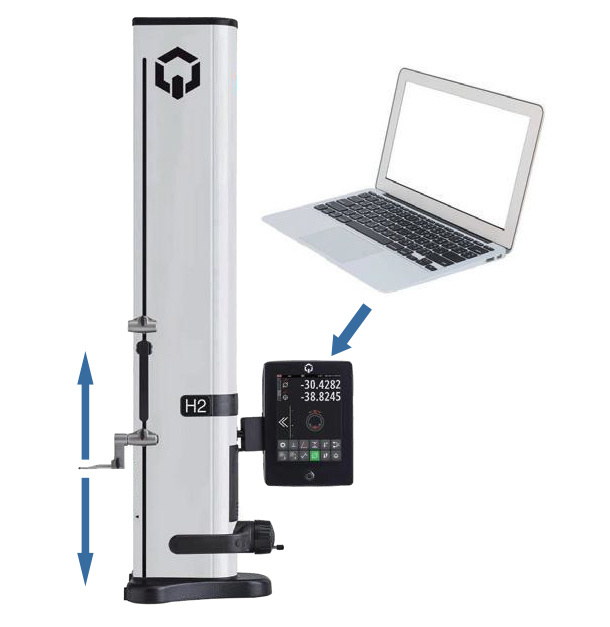

The instrument transmits data via PC

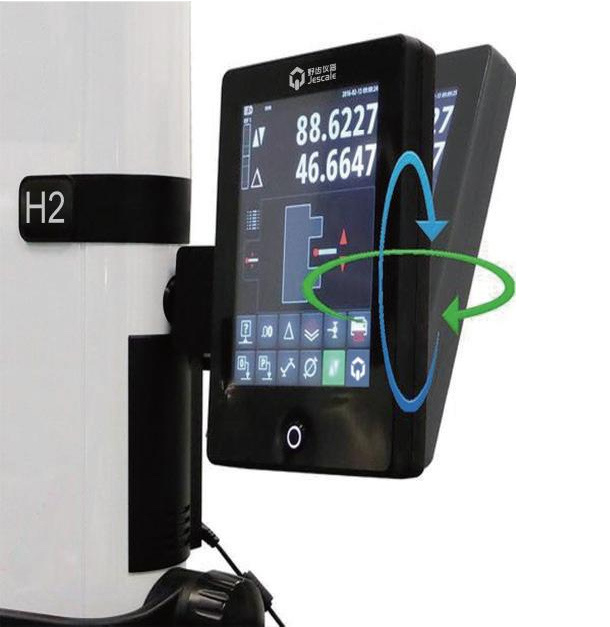

The display can be rotated
